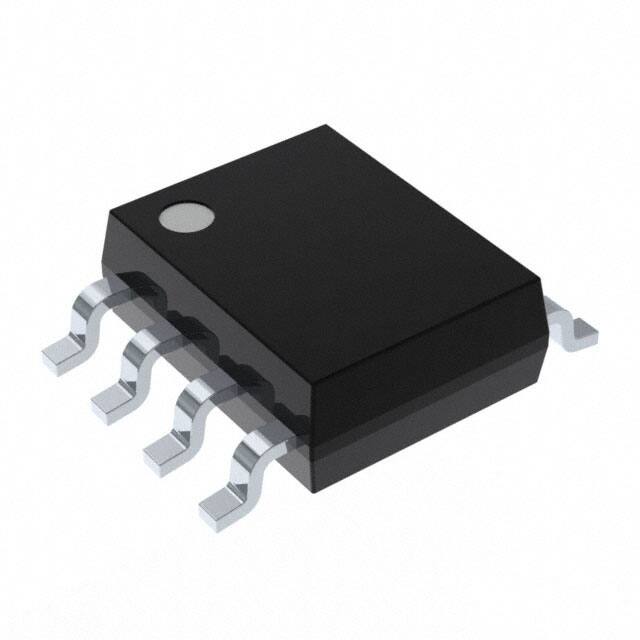

MAX706PESA+ Model：MAX706PESA+ Producer：Analog Devices / Maxim Integrated

Supervisory Circuits +3V Voltage Monitoring, Low-Cost, P Supervisory Circuits

Online inquiry

Previous Next

Detailed Specification Product packaging

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	Supervisory Circuits
RoHS:	Details
Type:	Voltage Supervisory
Mounting Style:	Through Hole
Package / Case:	PDIP-8
Threshold Voltage:	2.63 V
Number of Inputs Monitored:	1 Input
Output Type:	Active High, Push-Pull
Manual Reset:	Manual Reset
Watchdog Timers:	Watchdog
Battery Backup Switching:	No Backup
Reset Delay Time:	200 ms
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Accuracy:	2.5 %
Series:	MAX706
Packaging:	Tube
Brand:	Analog Devices / Maxim Integrated
Chip Enable Signals:	No Chip Enable
Height:	1.5 mm (Max)
Length:	5 mm (Max)
Operating Supply Current:	135 uA
Overvoltage Threshold:	2.7 V
Pd - Power Dissipation:	470.6 mW
Power Fail Detection:	Yes
Product Type:	Supervisory Circuits
	100
Subcategory:	PMIC - Power Management ICs
Supply Voltage - Min:	1.2 V
Undervoltage Threshold:	2.55 V
Width:	4 mm (Max)
Part # Aliases:	MAX706P
Unit Weight:	0.032805 oz
